2 molds 700pcs/h Customized Molds Paper Egg Tray Machine Pulp Molding Machine With Low Energy
Egg Tray Machine(Paper Pulp Molding Machine) Features:
1. controlled by computer, no needs any construction.
2. We could make all kinds of moulds for you, and it's very easy to change any moulds to the machine.
3. England technology, and spare parts is very famous brand from Germany, Taiwan...
4. with 2years warranty.
5. The installation of the whole line is easy.
It is for small business starter and low budget business man who wants to do small business first.
Egg tray machine working flow as the following:
1. Pulping system: Use waste paper and water as raw material and pulp up;
2. Forming system: The pulped material being delivered to Product Tray molds, and forming to the Product Tray plate shape;

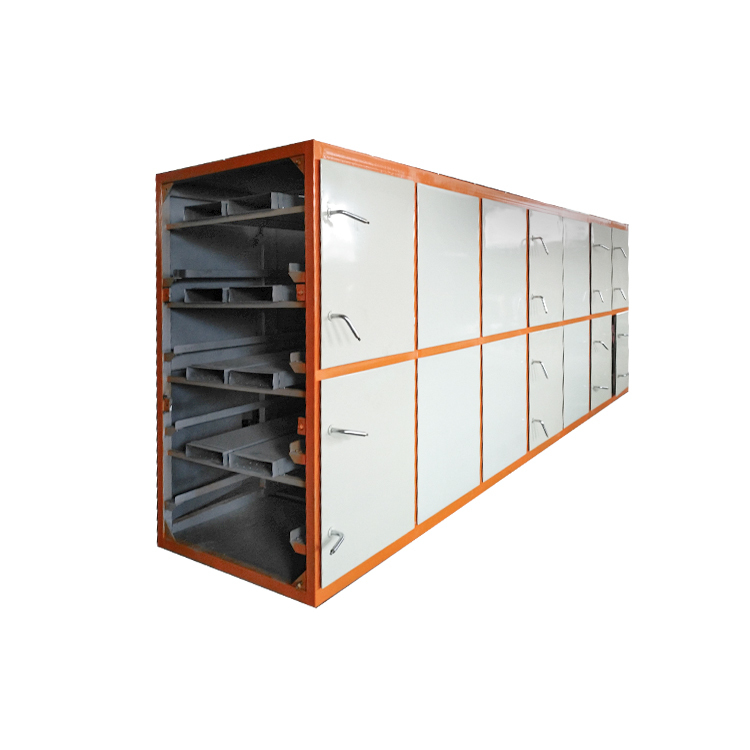

3. Drying system: The formed Product Tray plate being delivered to Dryer, and come up to Completed Strong Product Tray plate; The temperature of each section can be adjusted independently;burners with French or Italian brand;
The energy fuel of boiler for option: LPG,GAS,diesel oil,Equiped with auto control cabinet.
All the machine is in computer control, which is also very easy to operate and donnot need high level knowledge requirement for the workers.
Our Paper Egg Tray Machine saves production cost, and saves space. it is quitely used by small medium enterprises.
Our machine can turn your waste paper and books into Money!
Quick Detail
Condition: New
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of Origin: Shandong, China (Mainland)
Voltage: 380V
Power(W): Different Machine Model
Dimension(L*W*H): 7m*2.2m*2.2m
Weight: 8 tons-15tons
After-sales Service Provided: Engineers available to service machinery overseas
Capacity: 350pcs/h
Color: As customer needs
Frequency: 50Hz-60Hz
Application: egg tray,fruit tray,bottle tray
Workshop required: 150-300㎡
Worker required: 5-6 persons
Fuel: Coal, Natural Gas, Disel, LPG and so on
Automation: Automatic and fully automatic
Keyword: Egg tray machine
This production line is suitable for the following products:
Egg tray(30-egg) Egg box/egg carton(6-egg, 10-egg, 12-egg, 6+6-egg, 15-egg, 18-egg and etc)
Fruit tray (for apple,tomato, pear and etc) Cup carrier(4 pack and 2 pack) Seeding tray and bottle trays.
Some medical-care products and fixed shape(the design doesn't change frequently) pulp molding products with large quantity.
Technical data (700pcs/h type machine)
| Egg Tray Mold Quantity | 2pcs |
| Raw material | Waste paper |
| Egg tray Capacity | 700pcs/hour |
| Net weight per piece (gram) | 70g-75g |
| Waste paper consumption | 0.06ton / hour |
| Water Consumption | 0.1ton/hour |
| Natural Gas Consumption of Dryer | 20-25cbm/h |
| Worker requirement | 3-4workers |
| Machine Length | 7m-23m |
| Machine weight | 7-20tons |
| Power Requirement | Without dryer | 30KW |
| With dryer | 45KW |
| Area of workshop | Without dryer | More than100M² |
| With dryer, dryer-12m | More than240 M² |
| Container Requirement | Without dryer | 20ft*1 |
| With dryer | 40ft*2+20ft*1 |
| Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory |
| Delivery time | Depends on the machine capacity |
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC |
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
| Warranty time | Two years after the Egg tray machine received. |
| TERMS OF DELIVERY | FOB Qingdao Port, China |
| Package | In container |
| Certification | CE |
Factory Introduction
Jinan Wanyou Packing Machinery Factory is a famous packing machinery company which has a good mix of science, industry and trade.
It has been devoting to studying, developing, and manufacturing of packing machinery for more than ten years.
It absorbs advanced technology and industrial arts at home and abroad, and has studied and developed ZSJ series paper pulp molding plant, YS series paper carton automatic print fluting machine, BD series thin cutter paper slitter and paper carton series cutter chain.
These products are sold to many countries and areas, such as Algeria, Tunisia, Argentina, Vietnam, Russia, Uzbekistan, Nigeria, Taiwan and so on.
Don’t miss the chance of promoting the production efficiency of your company.
Welcome to contact us.
