Product Description:
Pulping System

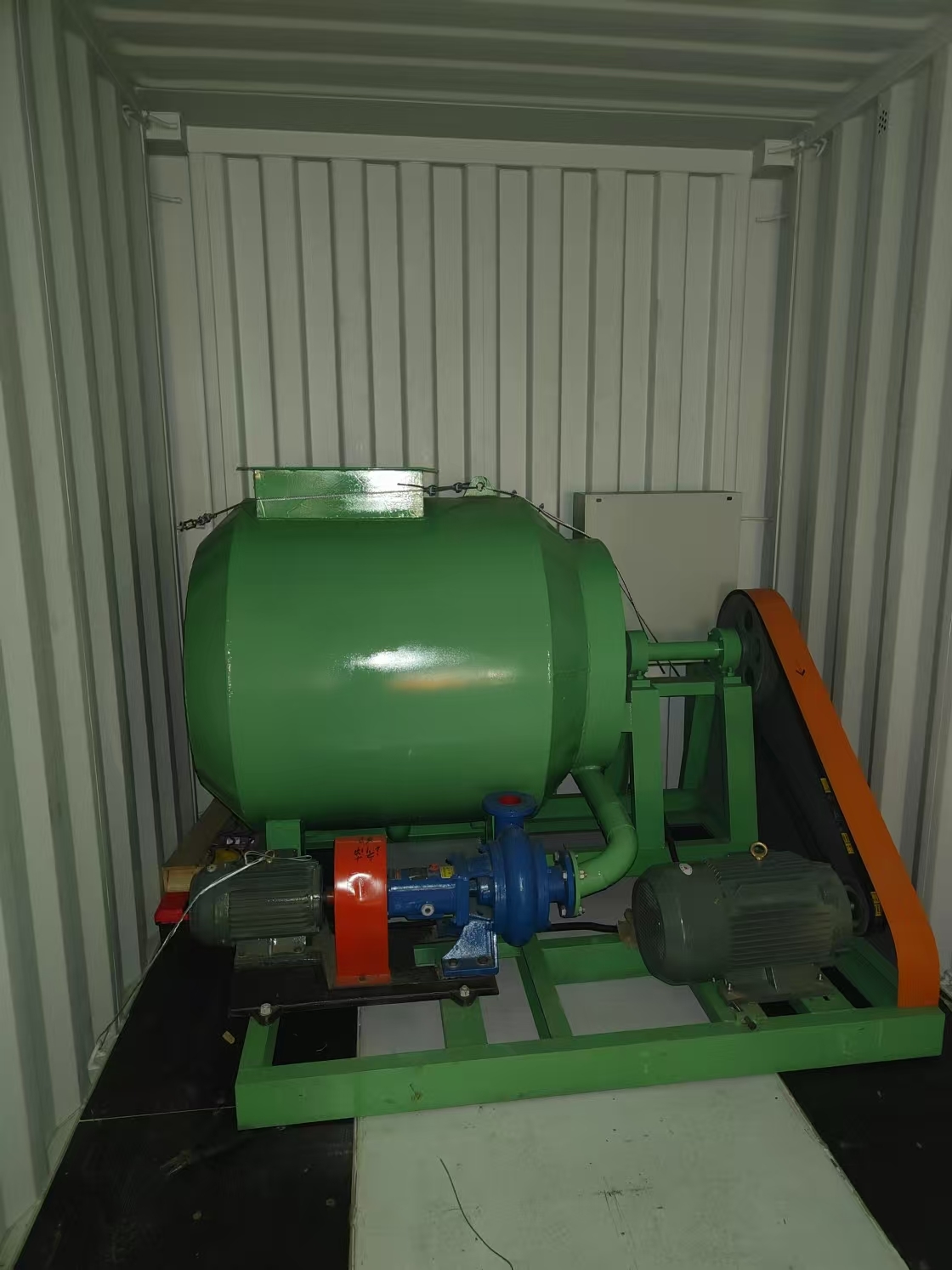

1. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.
Molding System

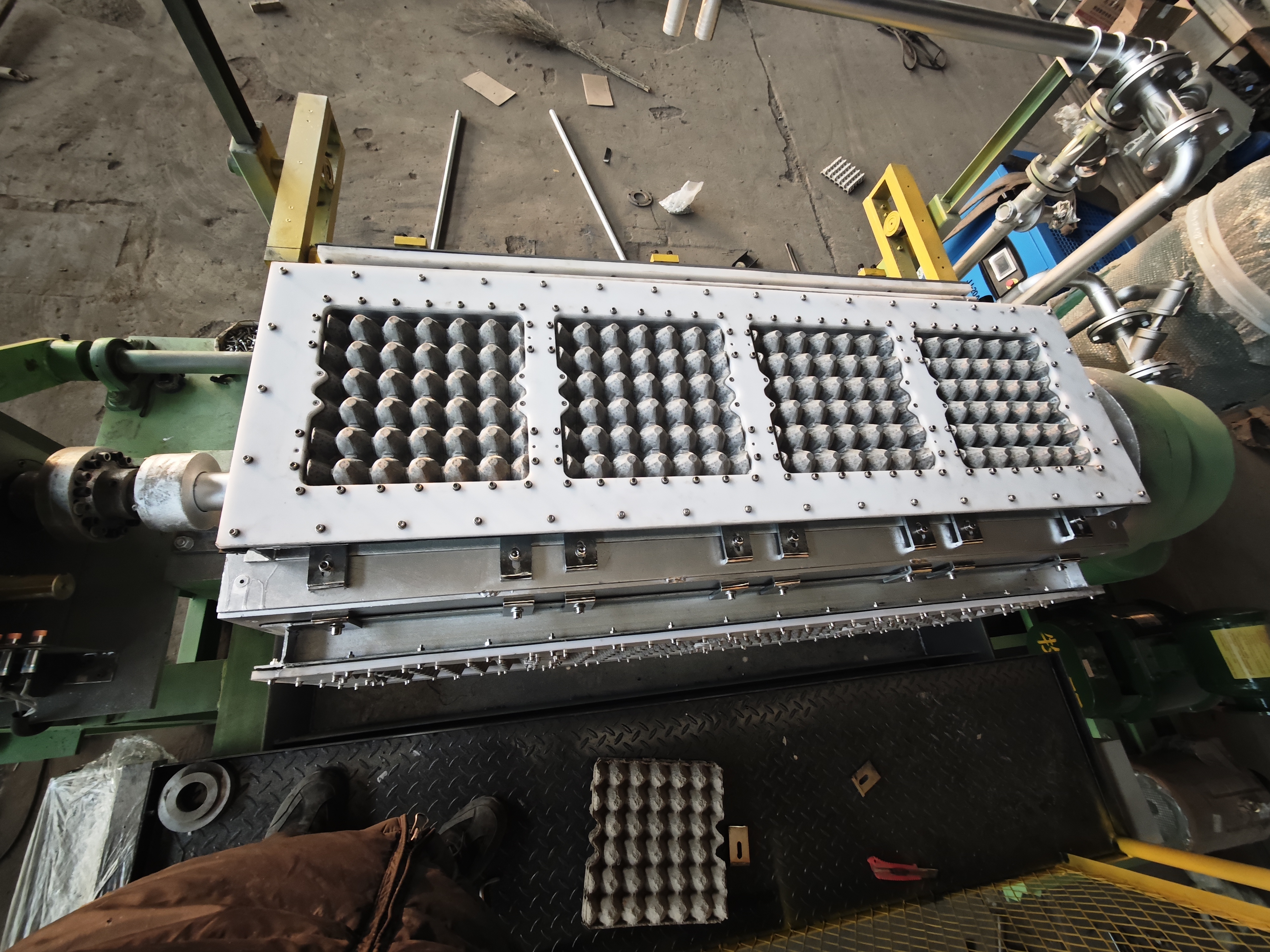

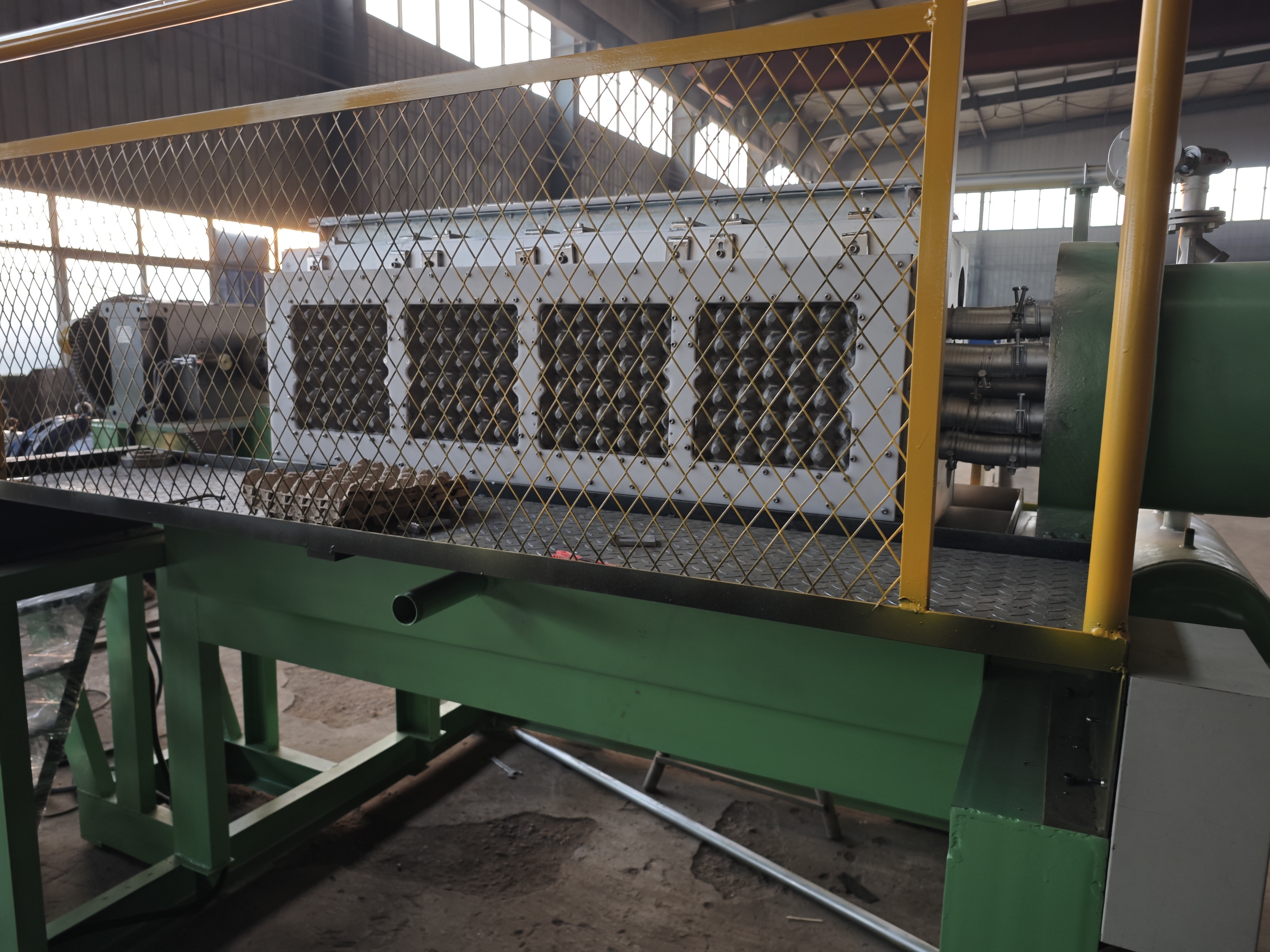

1. The molding machine is to absorb the pulp to the molding mold, absorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
2. The molding mold absorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the drying tray inside the dryer oven.
Drying System
1.Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.
Applications:
1. Poultry Farms: The machine is ideal for producing Paper Egg Tray, Egg Carton, and Seedling Tray in poultry farms. It can help in the safe storage and transportation of eggs and seedlings.
2. Agriculture Industry: Farmers can use this machine to create Seedling Trays for planting and transporting young plants efficiently.
3. Food Packaging Industry: The WANYOU WY-1 Egg Tray Forming Machine can be used to manufacture Appe Trays for food packaging applications.
4. Shoe Manufacturing Units: Shoe manufacturers can benefit from this machine by producing Shoe Trays for organizing and storing shoes during production and transportation.
5. Retail Stores: Retailers can use the machine to create Egg Cartons for packaging and selling eggs to customers.
Customization:
Product Customization Services for the Egg Tray Forming Machine:
- Brand Name: WANYOU
- Model Number: WY-1
- Place of Origin: Jinan, Shandong
- Minimum Order Quantity: 1 set
- Price: 6500usd
- Packaging Details: plastic films
- Delivery Time: depends
- Payment Terms: TT
- Supply Ability: 1set/month
- Final Prodcuts: Paper Egg Tray, Egg Carton, Appe Tray, Shoe Tray, Seedling Tray, Etc
- Products Type: Industrial packaging tray machine, Molded Pulp Paper Tray Making Machine
- Machine Type: 4 Sides Rotary
- Raw Materials: Old Cartons, Old Newspaper, Old Books
- Produce Capacity: 1500-6000pcs Per Hour
4*4 molds rotary forming paper egg tray machine technical data
| Egg Tray Mold Quantity | 16pcs(4pcs*4 faces) |
| Raw material | Waste paper |
| Egg tray Capacity | 2500pcs/hour |
| Net weight per piece (gram) | 70g-75g |
| Waste paper consumption | 190kg / hour |
| Water Consumption | 0.6ton / hour |
| Natural Gas Consumption of Dryer | 90cbm/h |
| Worker requirement | 5-7workers |
| Machine Length | 8m-33m |
| Machine weight | 9-32tons |
| Power Requirement | Without dryer | 80KW |
| With dryer | 120KW |
| Area of workshop | Without dryer | More than 200 M² |
| With dryer, dryer-24m | More than400M² |
| Container Requirement | Without dryer | 20ft*1 |
| With dryer | 40hq*3 |
| Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. |
Support and Services:
The Product Technical Support and Services for the Egg Tray Forming Machine include:
- Installation guidance and assistance
- Operational training for using the machine efficiently
- Troubleshooting support for any technical issues
- Maintenance recommendations and schedules
- Spare parts availability and supply
- Upgrades and customization options
