20KW-50KW Waste Paper Pulp Molding Machine/Egg Tray Machine With Aluminum Molds
The Paper Egg Tray Machine includes pulp making system,forming system and drying system.
Pulping System
1. Put the raw material and water into the hydraulic pulper, you will get the paper pulp after mixed 10-20 minutes.
2. Pulp pump will transfer the finished paper pulp into the slurry pool.
3. The pulp pond beater will mix the pulp concentration.
4. The pulp pump will transfer the pulp into forming machine.
Molding System
1. The molding machine is to absorb the pulp to the molding mold, absorb the pulp to the molding mold through the suction of the vacuum system to absorb the excess water into the gas-water separation tank, and then pump the water to the tank for storage.
2. The molding mold absorbs the pulp and then forms it. and then the transfer mold takes out the finished product and sends it to the drying tray inside the dryer oven.
Drying System
1.Heat source: natural gas, diesel, liquefied petroleum gas and other combustion liquids and gases.The transmission mode adopts industrial transmission chain to drive the net plate transmission, which runs in the drying line.
1000pcs paper egg tray machine technical data:
| Egg Tray mould quantity | 3pcs | Container Required |
| Raw material | Waste paper | About 40ft*1(without dryer)
|
| Output for egg tray | 1000pcs/hour |
|
| Net weight per piece (gram) | 70g-75g |
|
| The volume of waste paper consumed | 0.075ton / hour |
|
| The volume of water consumed | 0.22ton / hour |
|
| The natural gas consumption of the dryer(about)
| 45cbm/h
|
|
| Machine Weight | 8tons |
|
| Egg tray Size | 295mm*295mm 30eggs |
|
| Remark: 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and engineer charge USD100/day ) |
paper egg tray machine
| Main parts | Quantity | Picture |

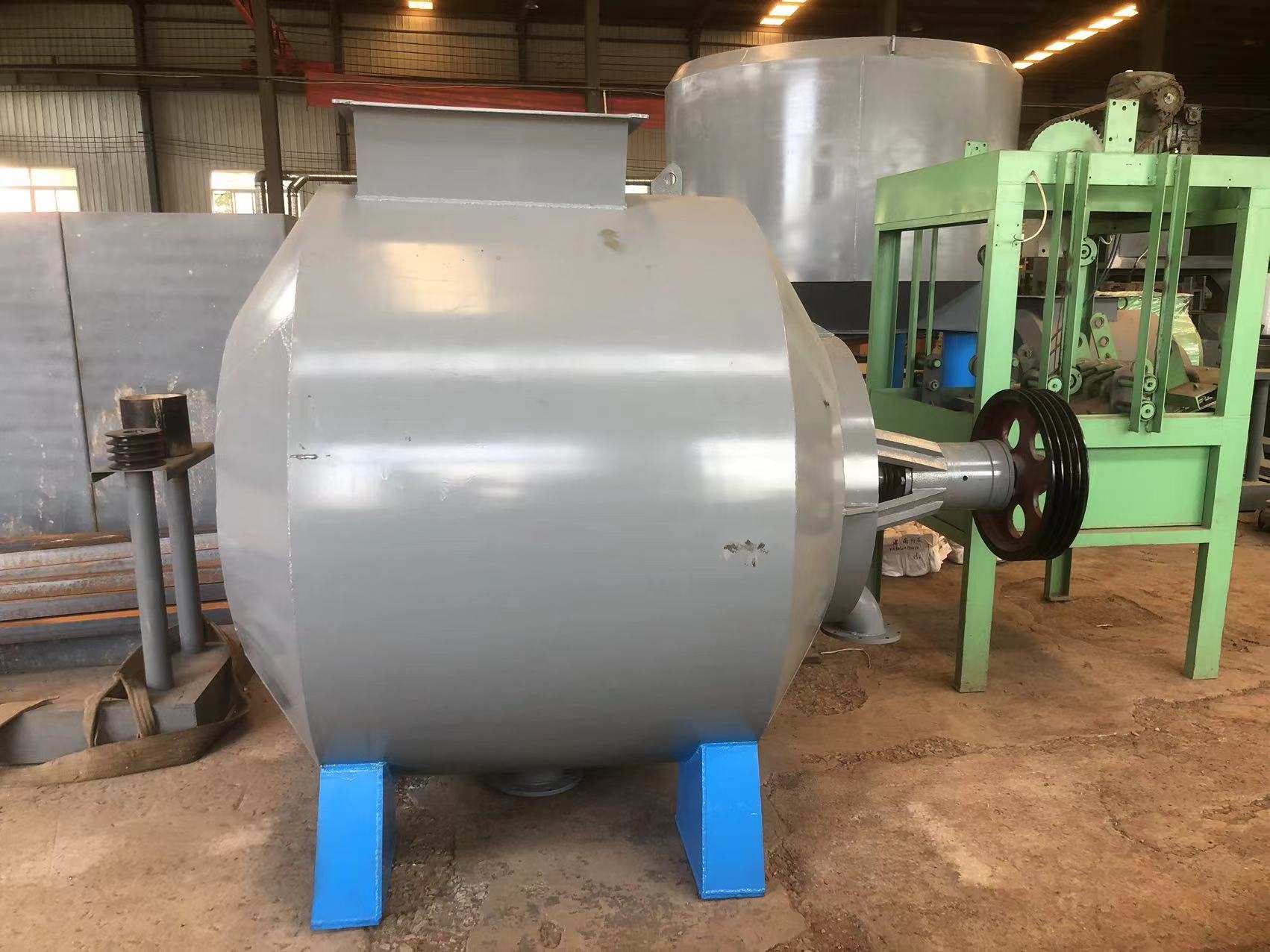

| Pulping system
|
Including : mill pulp pump -1set water pump-2sets pulp pump -2sets 1M³pulping machine –1sets | 1set |  |

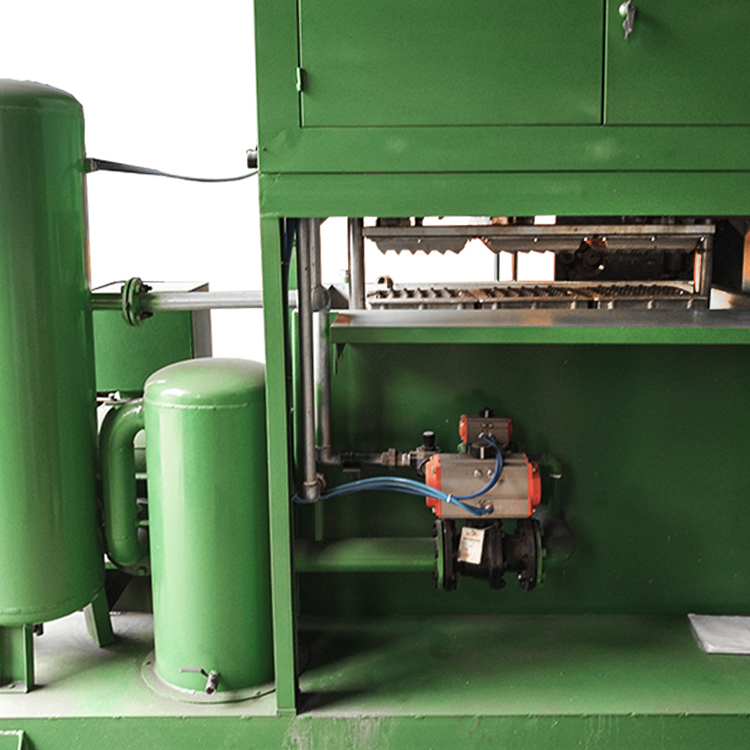

| Forming system
| Including 3 moulds forming machine -1set Vacuum pump-1set Compressor -1set Washer –1set Vacuum tank-1pcs Air tank—1pcs | 1set |  |
The warranty period: 1 year Guarantee for the maintance and repairment of the forming
machine exclude the parts of quick-wear. The spare parts will be provided according to the
client requirement.
