Durable Paper Egg Tray Machine Pulp Molding Machine Controlled By Computer With High Efficiency
Machine Introduction:
Egg tray machine
This machine is composed of the following sections:
1. Egg Tray Pulping System:
hydrapulper,water pump, pulp pump, mixter with blades, etc.

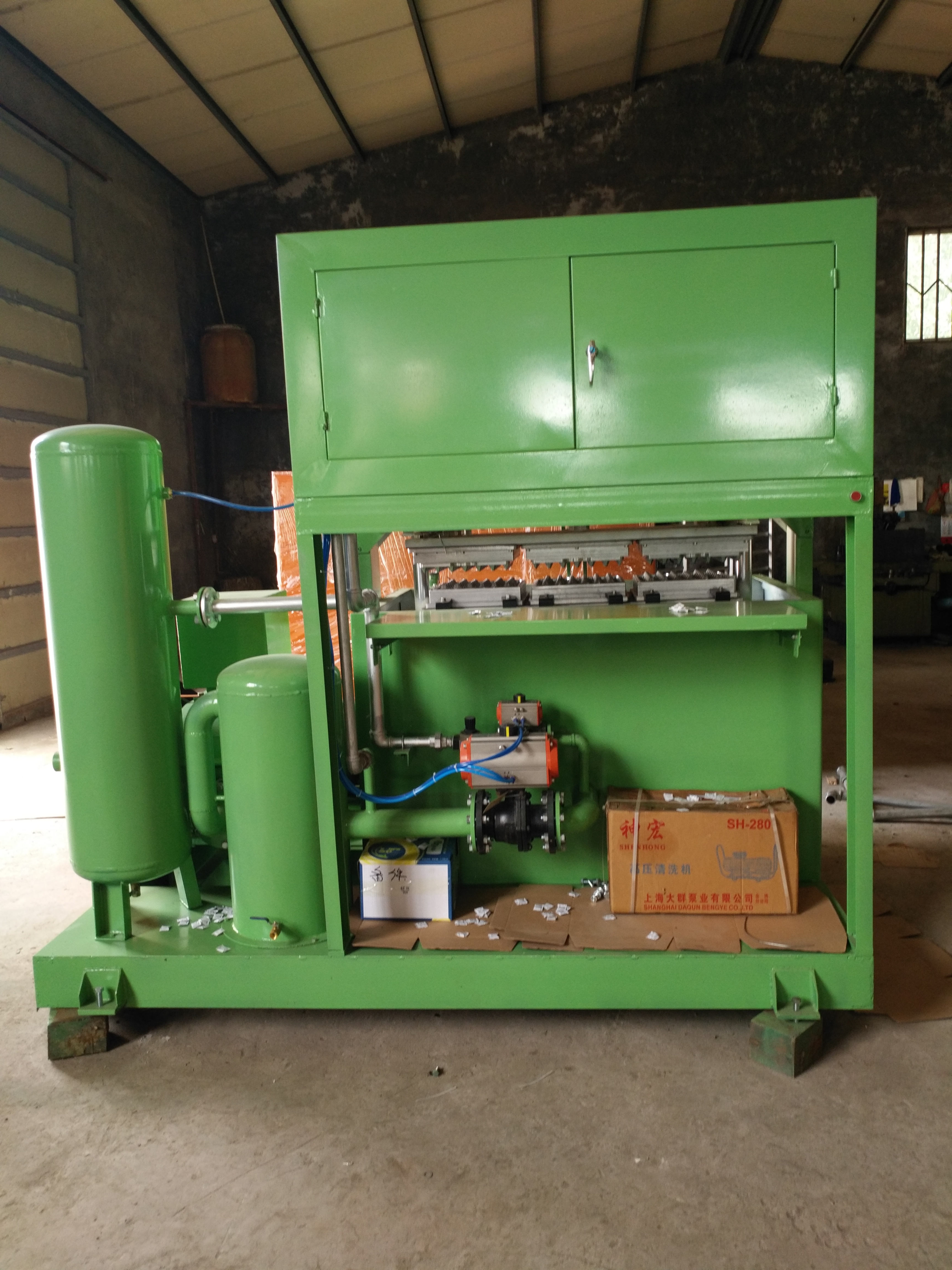

2. Egg Tray Molding Forming System : forming molds and transferring molds, forming machine, electrical cabinet, PLC controlled, vacuum pump with vacuum tank, air compressor with air tank, valves, etc.

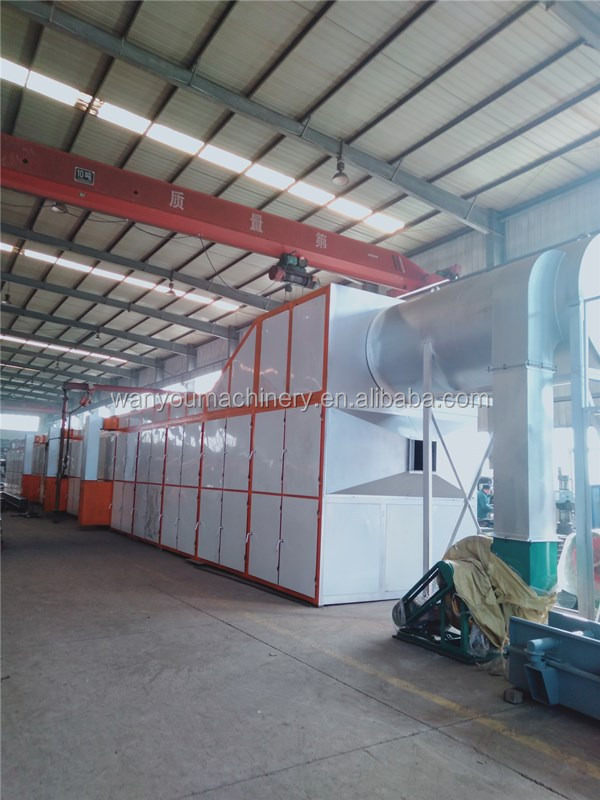

3. Egg Tray Drying system (can use gas,dissel,coal for Boiler burner)
metallic dryer of paper egg tray machine includes: 4 layer metal dryer oven, drying pallets, chains, chain wheels, hammer for intention of chains, burner, boiler,insulation doors, fans, etc.
4. Egg Tray Automatic counting(optional):
After drying line ,the egg trays go to the automatic counting and stacking system. You can preset the quantity of one pile ,such as 100pcs or 200pcs, when the quantity no is done, the counting device will be alarmed. And the products stacked at the same time. You can packaged them directly .
Many capacity egg tray machines we offered:
| Egg Tray Mold Quantity | 4pcs |
| Raw material | Waste paper |
| Egg tray Capacity | 1300pcs/hour |
| Net weight per piece (gram) | 70g-75g |
| Waste paper consumption | 97.5kg / hour |
| Water Consumption | 0.2ton / hour |
| Natural Gas Consumption of Dryer | 50cbm/h |
| Worker requirement | 4-6workers |
| Machine Length | 8m-35m |
| Machine weight | 8-30tons |
| Power Requirement | Without dryer | 45KW |
| With dryer | 65KW |
| Area of workshop | Without dryer | More than 150 M² |
| With dryer, dryer-24m | More than320M² |
| Container Requirement | Without dryer | 40ft*1 |
| With dryer | 40ft*3 |
| Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g). 2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant. |
Payment and delivery
| Trade terms | FOB Qingdao or EXW Factory |
| Delivery time | About 30 working days after receiving the deposit. |
| Payment term | BY T/T 30%DEPOSIT+70%BALANCE or 30% TT Deposit + 70% LC |
| Time of payment | When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
| Warranty time | Two years after the Egg tray machine received. |
| TERMS OF DELIVERY | FOB Qingdao Port, China |
| Package | In container |
| Installation |
| 1.Usually, all installation and debugging work will be done before shipment. 2. If the buyer wants to Install the debugging term, the seller will arrange one people instructs the installment(all travel ticket and hotel charge by buyer and egineer charge USD100/day ) |
|
Our Machine Advantages:
1. Controlled by automatic computer soft ware
2. No need for installation, machine can start running only after connecting some pipes, power and water, and preparing the material
3. Some parts are Germany brand or other famous brand
4. Our egg tray machine can make different trays at same time by using different moulds
5. Besides egg tray, fruit trays, our machine also can produce industrial package
6. All installation and debugging work will be done before shipment.
7. 20 years' experience on egg tray machine
End product of our paper egg tray machine:
Welcome to contact us!
